Panel Radiator

JD-22K

Name: JD-22K Type 22 Panel Radiator
Brand: Jiuding Radiator

Type 22 Panel Radiator

Export-ready manufacturing

CE/EN442-certified production, exporting to 80+ countries since 2002.

OEM/ODM support: custom sizes, colors and packaging.

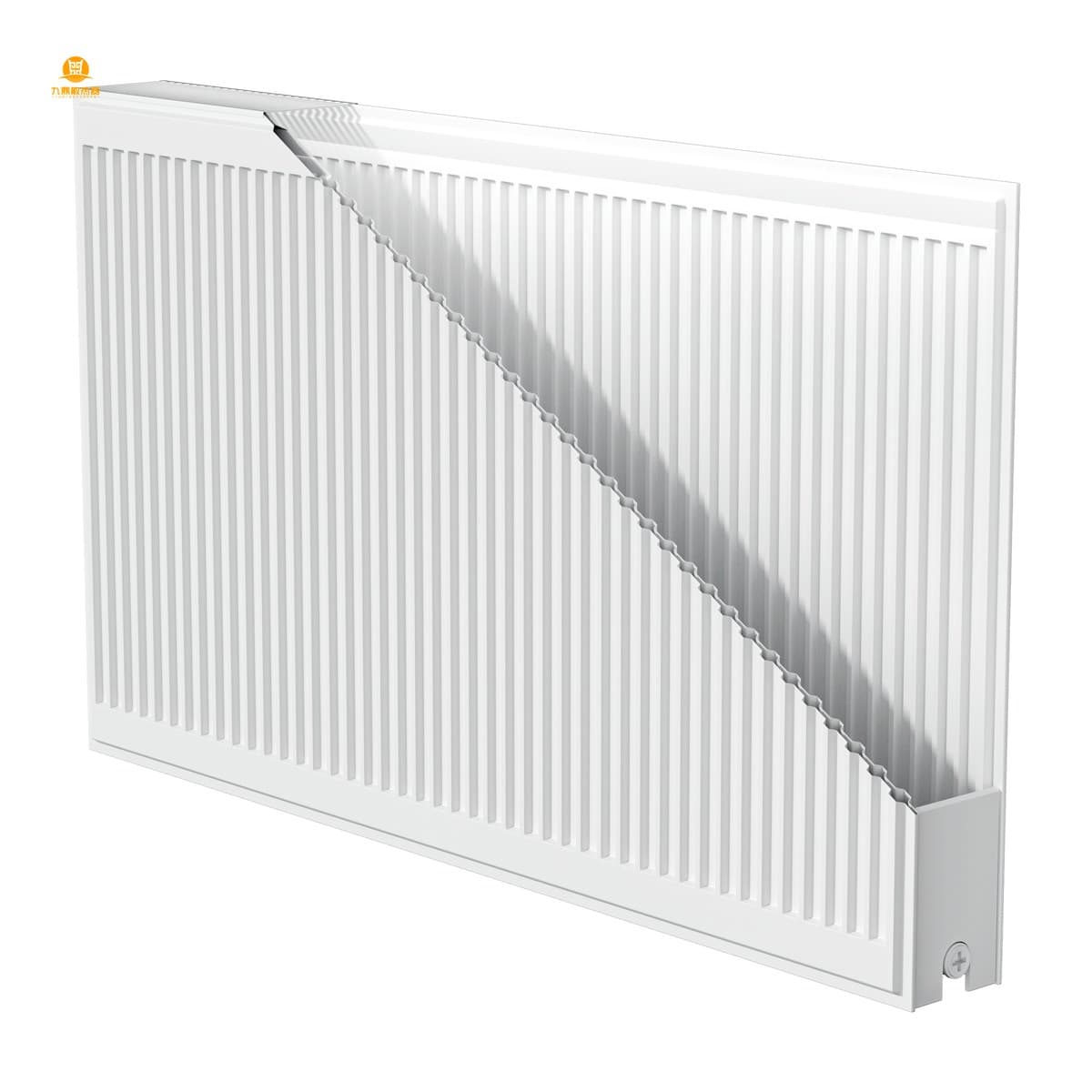

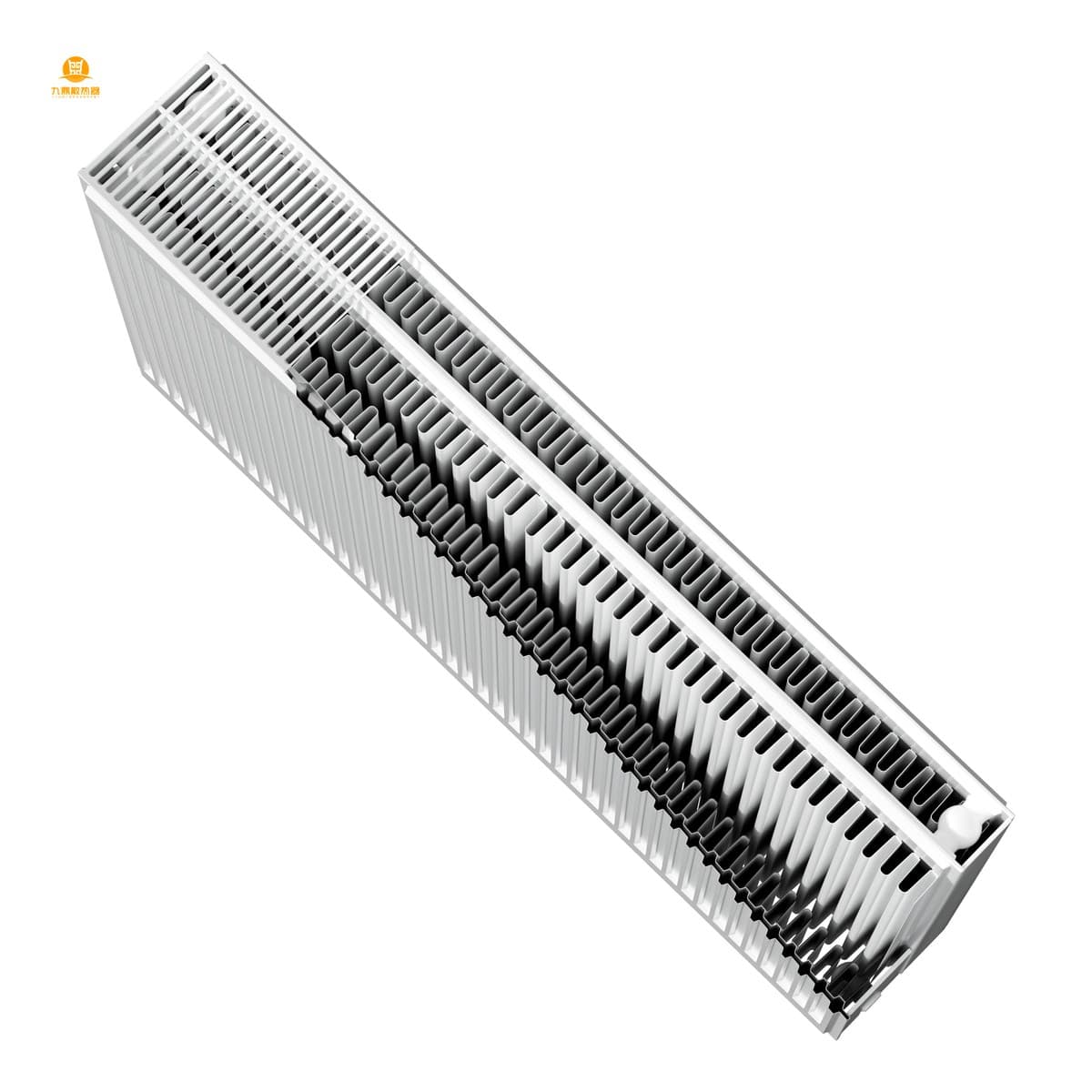

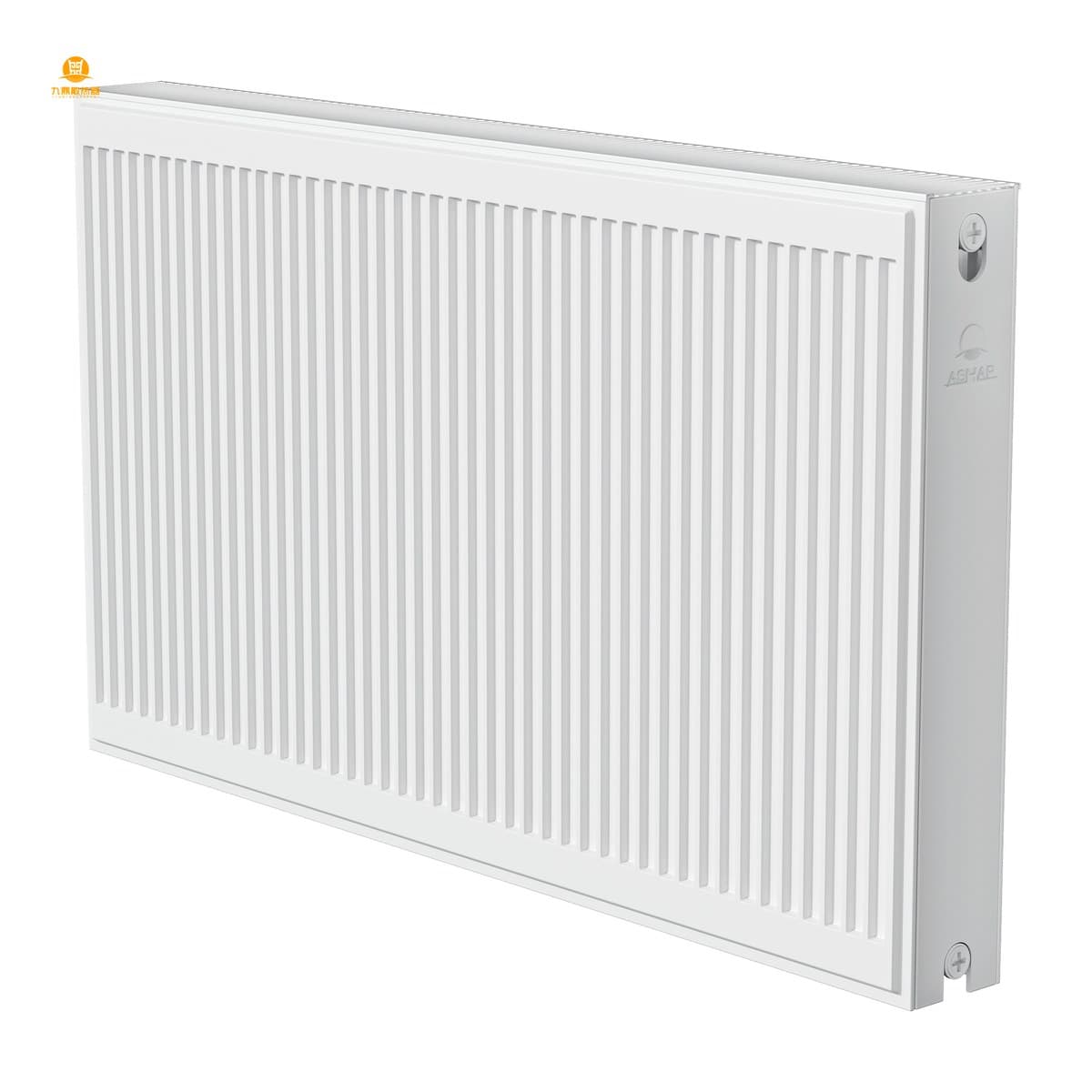

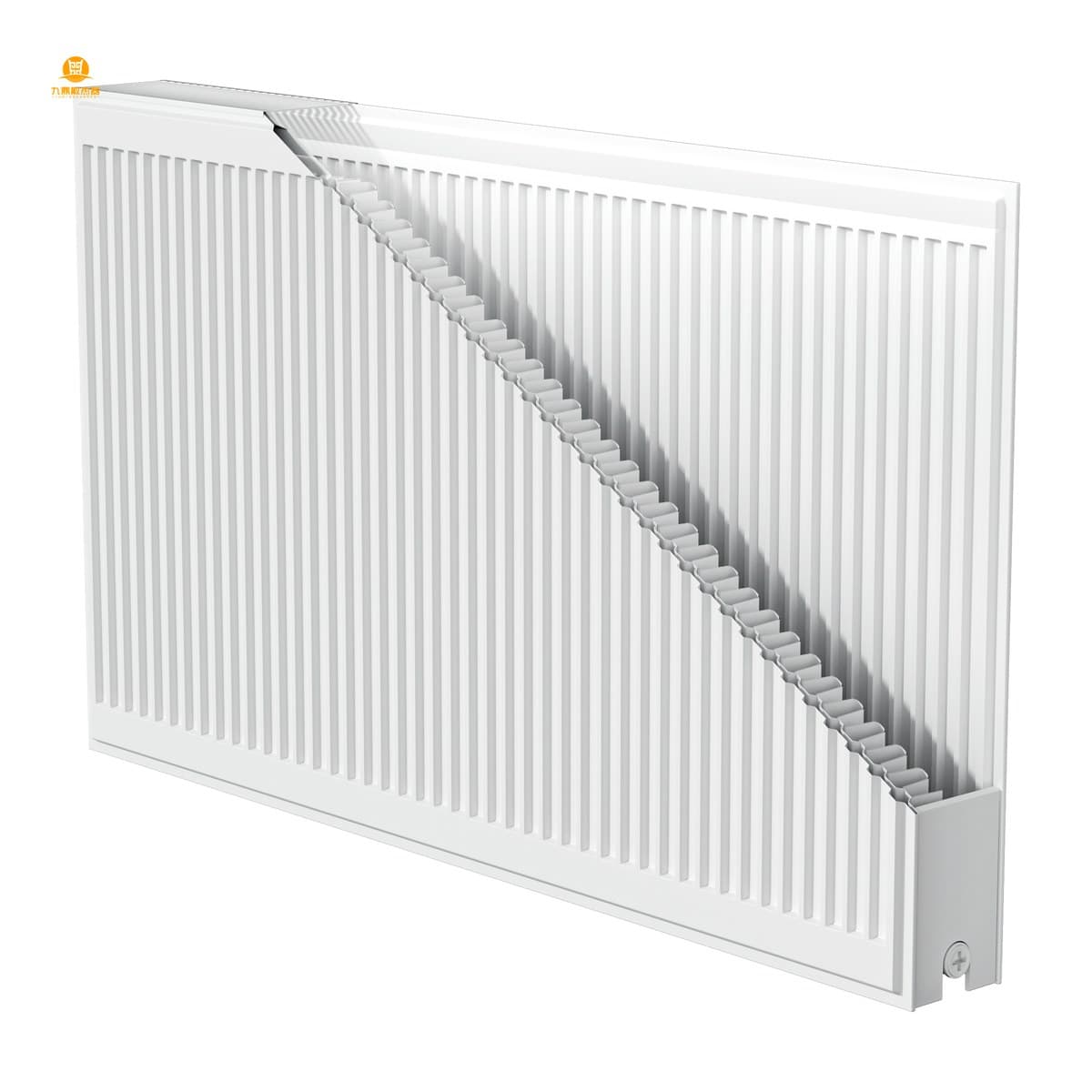

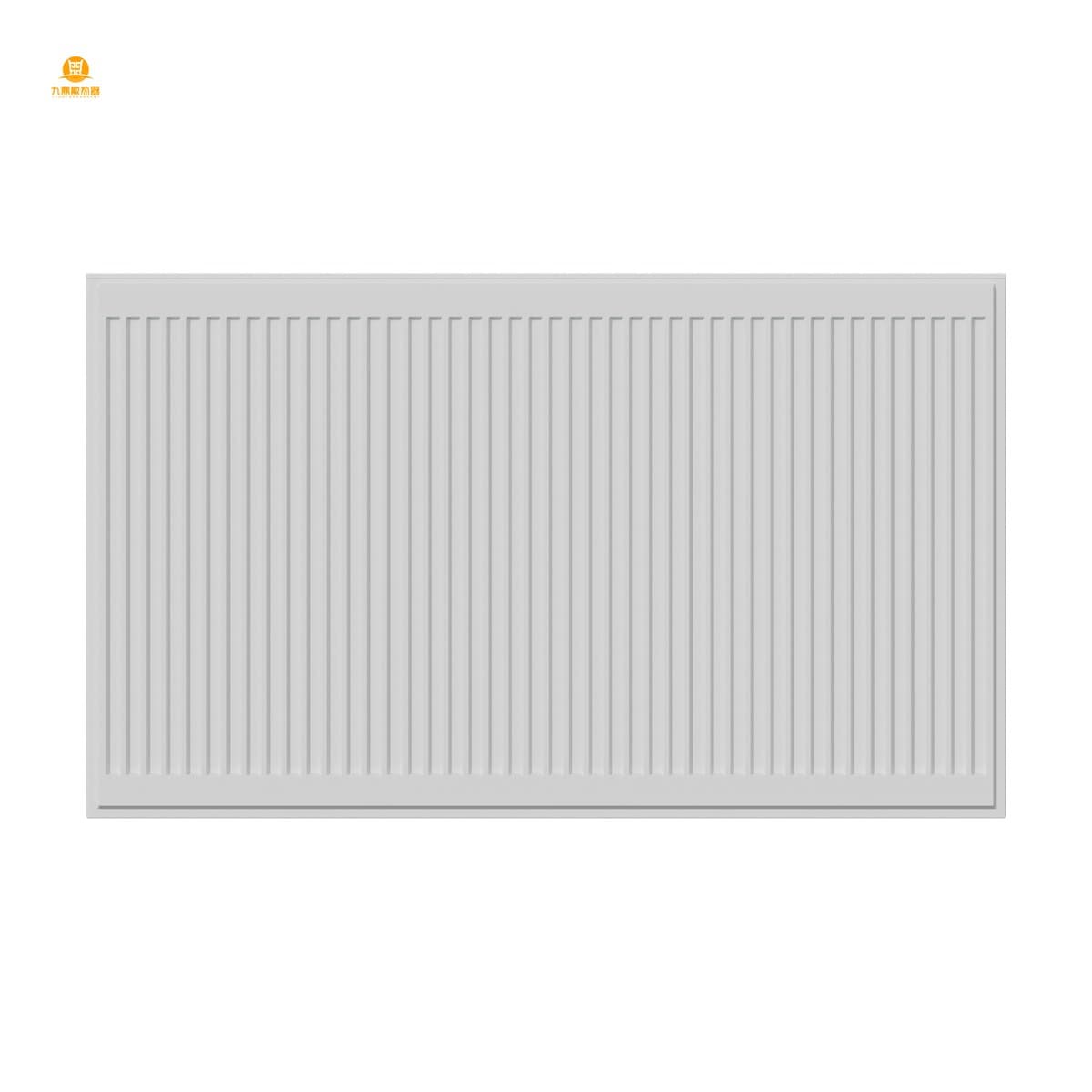

The JD-22K Type 22 panel radiator features double panels and double convectors for exceptional heat output of 700–5200 W, making it one of the most powerful mainstream panel radiators available. Available in heights from 300 to 900 mm with a powder-coated White RAL 9016 finish on cold-rolled steel, it complies with CE/EN442 at 1.0 MPa (10 bar). Exported to over 80 countries since 2002 with OEM/ODM support — the go-to choice for demanding residential and light commercial heating applications.

Specifications

Profile	Type 22 (double panel, double convector)
Dimensions	300 / 400 / 500 / 600 / 900 mm
Depth	100 mm
Heat Output (EN442 ΔT=50°)	700–5200 W
Heat Output (EN442 ΔT=30°)	≈ 360–2677 W
Working Pressure	1.0 MPa (10 bar)
Material	Cold-rolled steel
Available Colors	White RAL 9016
Finish	Powder coated

Specifications by size

Height (mm)	Length (mm)	Depth (mm)	Heat Output (W)	Weight (kg)
300	400	100	393	7.6
300	500	100	492	9.2
300	600	100	590	10.7
300	700	100	688	12.2
300	800	100	786	13.7
300	900	100	885	15.2
300	1000	100	983	16.7
300	1100	100	1081	18.2
300	1200	100	1180	19.8
300	1400	100	1376	22.8
300	1600	100	1573	25.8
300	1800	100	1769	29
300	2000	100	1966	32
300	2200	100	2163	35
300	2400	100	2359	38
400	400	100	504	9.9
400	500	100	630	11.9
400	600	100	755	13.9
400	700	100	881	16
400	800	100	1007	18
400	900	100	1133	20
400	1000	100	1259	22.1
400	1100	100	1385	24.1
400	1200	100	1511	26.1
400	1400	100	1763	30.2
400	1600	100	2014	34.2
400	1800	100	2266	38.5
400	2000	100	2518	42.6
400	2200	100	2770	46.6
400	2400	100	3022	50.7
500	300	100	454	9.7
500	400	100	605	12.2
500	500	100	757	14.8
500	600	100	908	17.3
500	700	100	1059	19.8
500	800	100	1210	22.4
500	900	100	1362	24.9
500	1000	100	1513	27.5
500	1100	100	1664	30.1
500	1200	100	1816	32.6
500	1400	100	2118	37.7
500	1600	100	2421	42.8
500	1800	100	2723	48.1
500	2000	100	3026	53.2
500	2200	100	3329	58.3
500	2400	100	3631	63.3
600	300	100	524	11.5
600	400	100	699	14.5
600	500	100	874	17.6
600	600	100	1048	20.7
600	700	100	1223	23.8
600	800	100	1398	26.8
600	900	100	1572	29.9
600	1000	100	1747	33
600	1100	100	1922	36.1
600	1200	100	2096	39.2
600	1300	100	2271	42.3
600	1400	100	2446	45.4
600	1600	100	2795	51.5
600	1800	100	3145	58
600	2000	100	3494	64.1
600	2200	100	3843	70.4
600	2400	100	4193	76.4
700	400	100	785	16.7
700	500	100	982	20.3
700	600	100	1178	23.9
700	700	100	1374	27.5
700	800	100	1570	31.1
700	900	100	1767	34.6
700	1000	100	1963	38.3
700	1100	100	2159	41.9
700	1200	100	2356	45.5
700	1400	100	2748	52.6
700	1600	100	3141	59.8
700	1800	100	3533	67.3
700	2000	100	3926	74.5
700	2200	100	4319	81.6
700	2400	100	4711	88.8

Heat output per EN 442 (ΔT=50°C). Custom lengths available on request.
