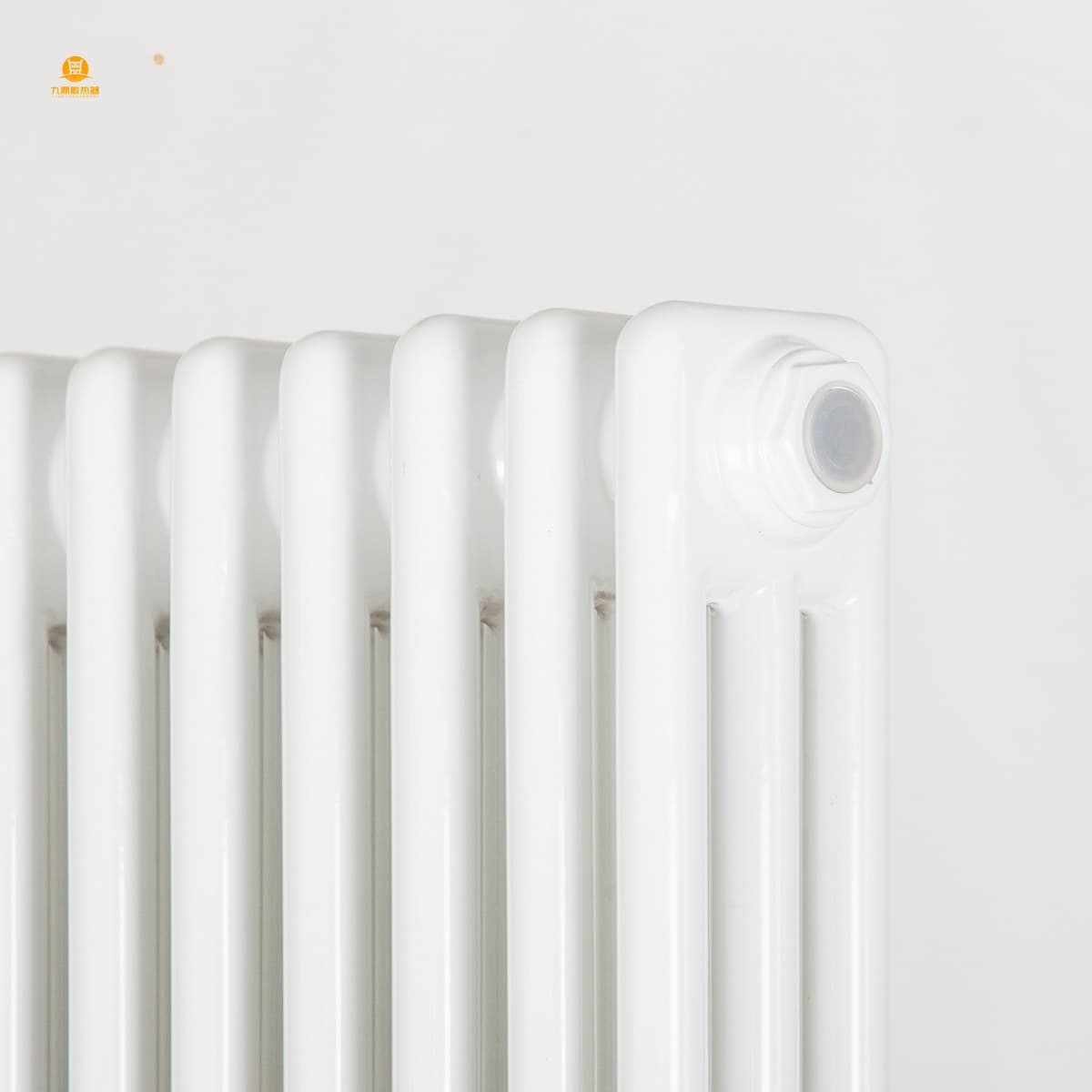

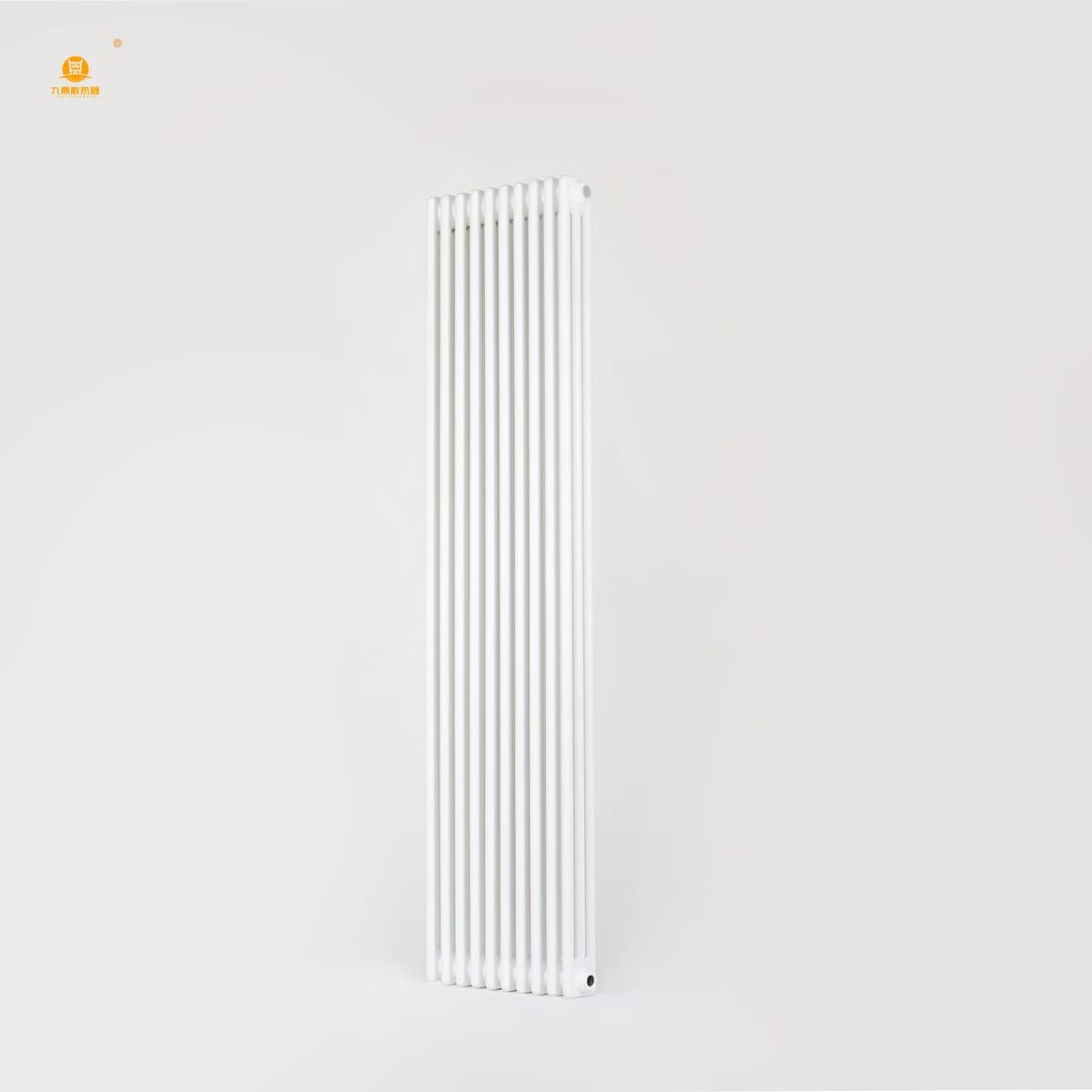

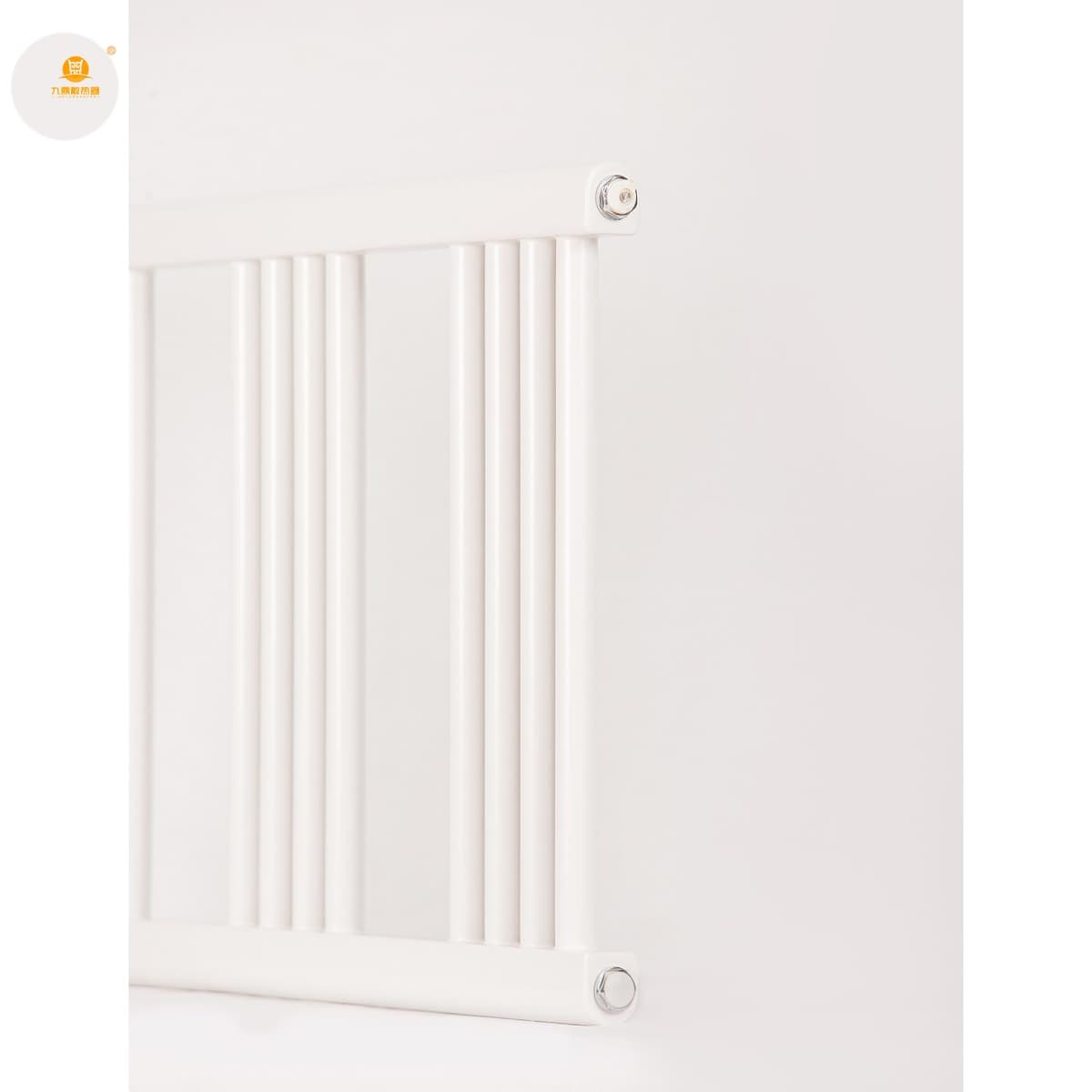

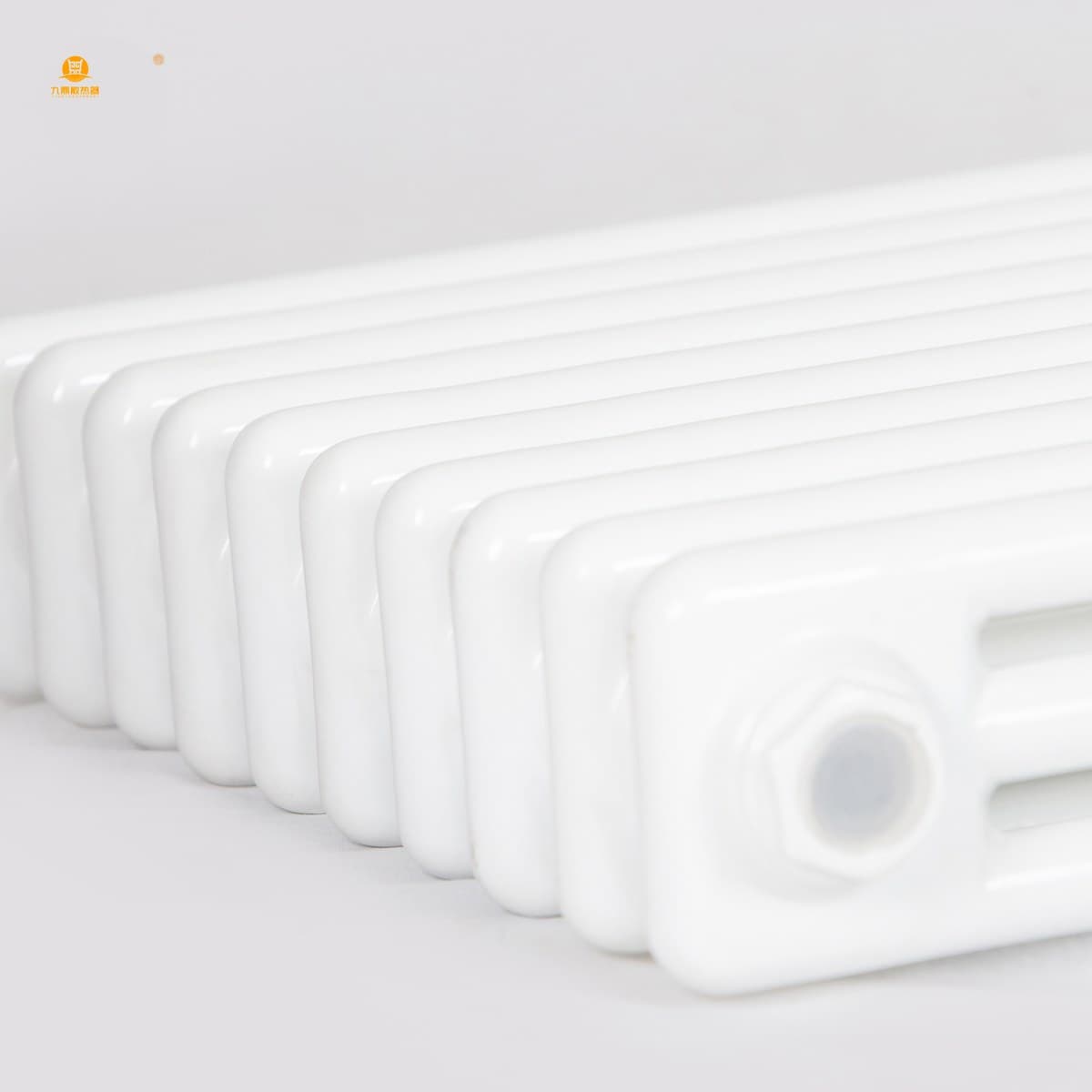

Column Radiator
JDGZ2
2-Column Steel Radiator
Export-ready manufacturing
EN 442 and GOST compliant production, exporting across Europe, Russia and Central Asia since 2002.
OEM/ODM support: custom sizes, colors and packaging.
The JDGZ2 two-column steel radiator offers a timeless twin-column design precision-welded from cold-rolled steel, delivering 50–120 W per section with output fully scalable by adding sections, rated at 1.0 MPa working pressure. Available in seven heights from 300 to 1800 mm finished in White RAL 9016 or a custom RAL colour. CE-certified to EN442, with exports to Europe, Russia and Central Asia since 2002 and OEM/ODM services available.
Specifications
| Profile | 2-Column |
| Dimensions | 300 / 500 / 600 / 900 / 1200 / 1500 / 1800 mm |
| Heat Output (EN442 ΔT=50°) | Per section: 50–120 W |
| Heat Output (EN442 ΔT=30°) | Per section: ≈ 26–62 W |
| Working Pressure | 1.0 MPa (10 bar) |
| Material | Cold-rolled steel |
| Available Colors | White RAL 9016 / Custom RAL |
| Finish | Glossy / Matte |
