Panel Radiator

JD-33K

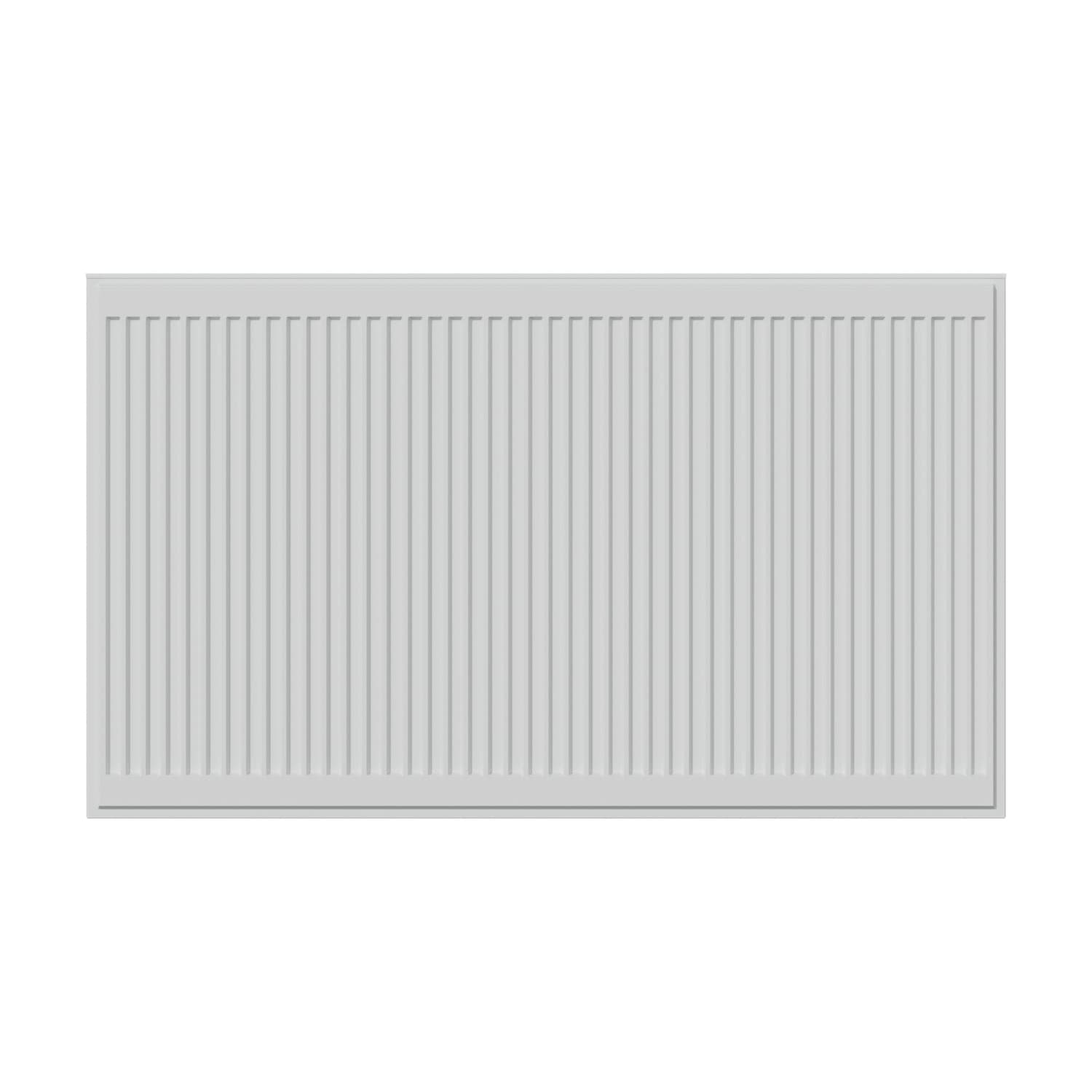

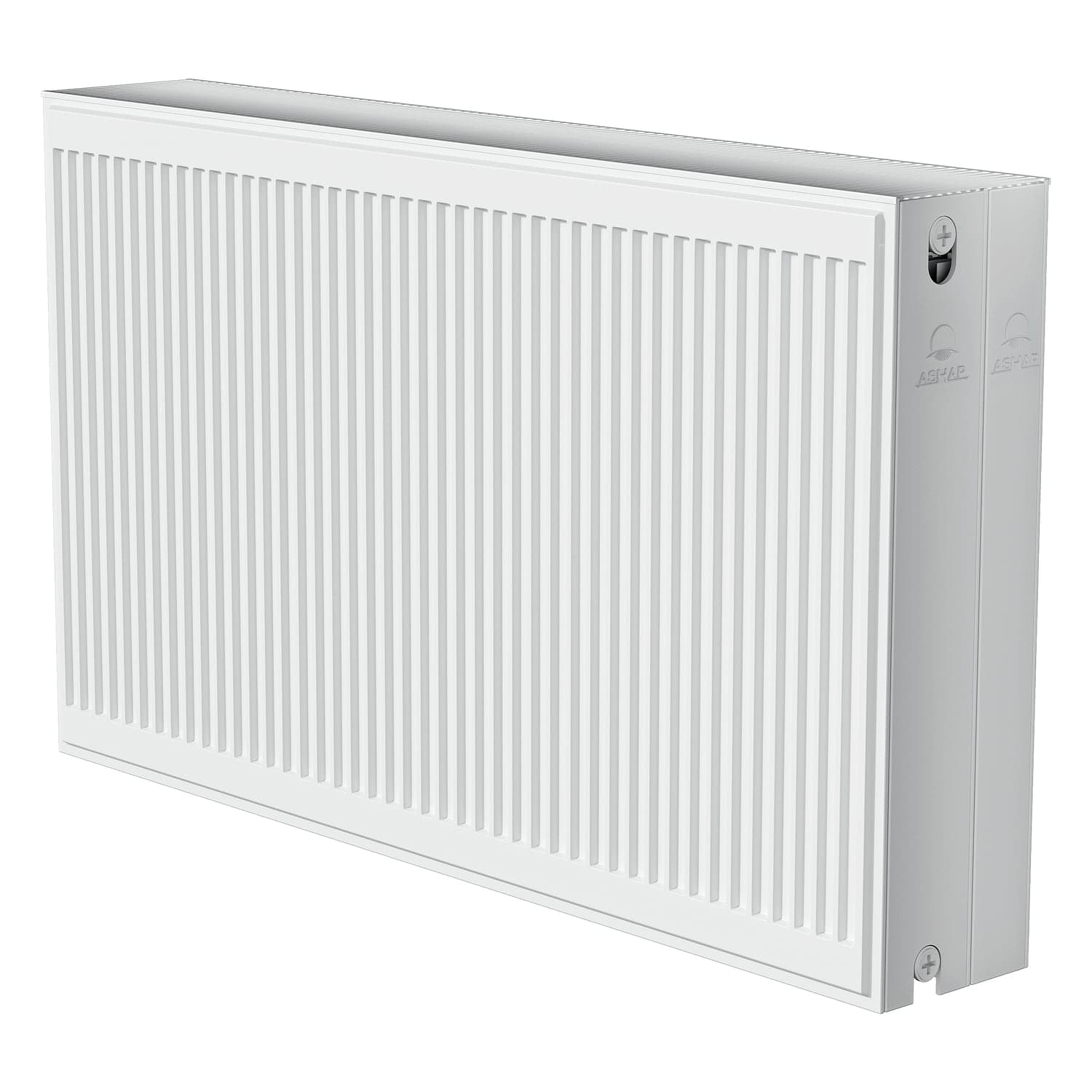

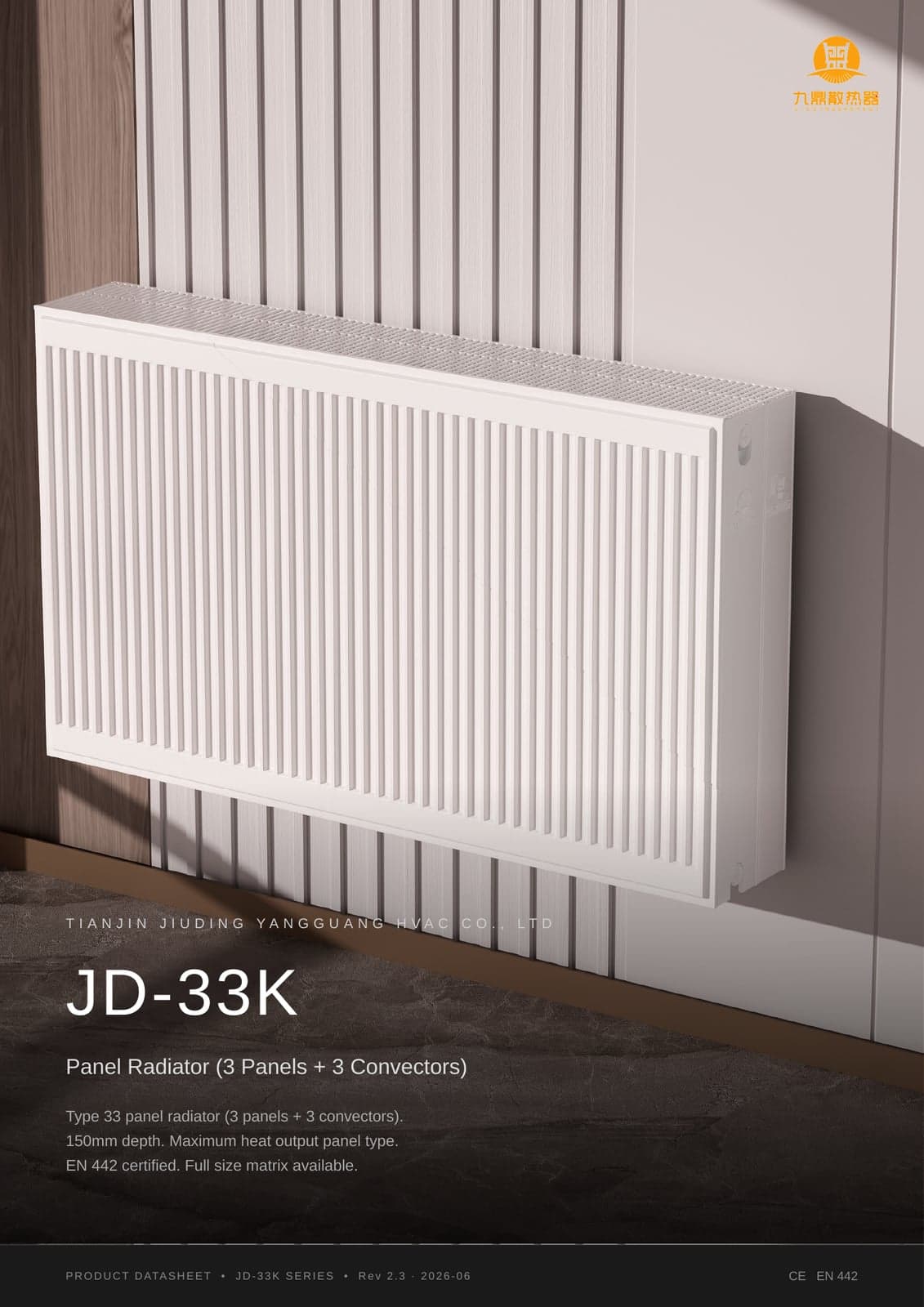

Name: JD-33K Type 33 Panel Radiator
Brand: Jiuding Radiator

Type 33 Panel Radiator

Export-ready manufacturing

CE/EN442-certified production, exporting to 80+ countries since 2002.

OEM/ODM support: custom sizes, colors and packaging.

The JD-33K is the highest-output model in the panel radiator range, combining triple panels and triple convectors for heat delivery of 1100–8000 W — designed for large spaces and high heat-load requirements. Available in heights from 300 to 900 mm, the cold-rolled steel body carries a powder-coated White RAL 9016 finish and complies with CE/EN442 standards at 1.0 MPa (10 bar). Backed by over two decades of export experience to 80+ countries since 2002, with OEM/ODM manufacturing services available.

Specifications

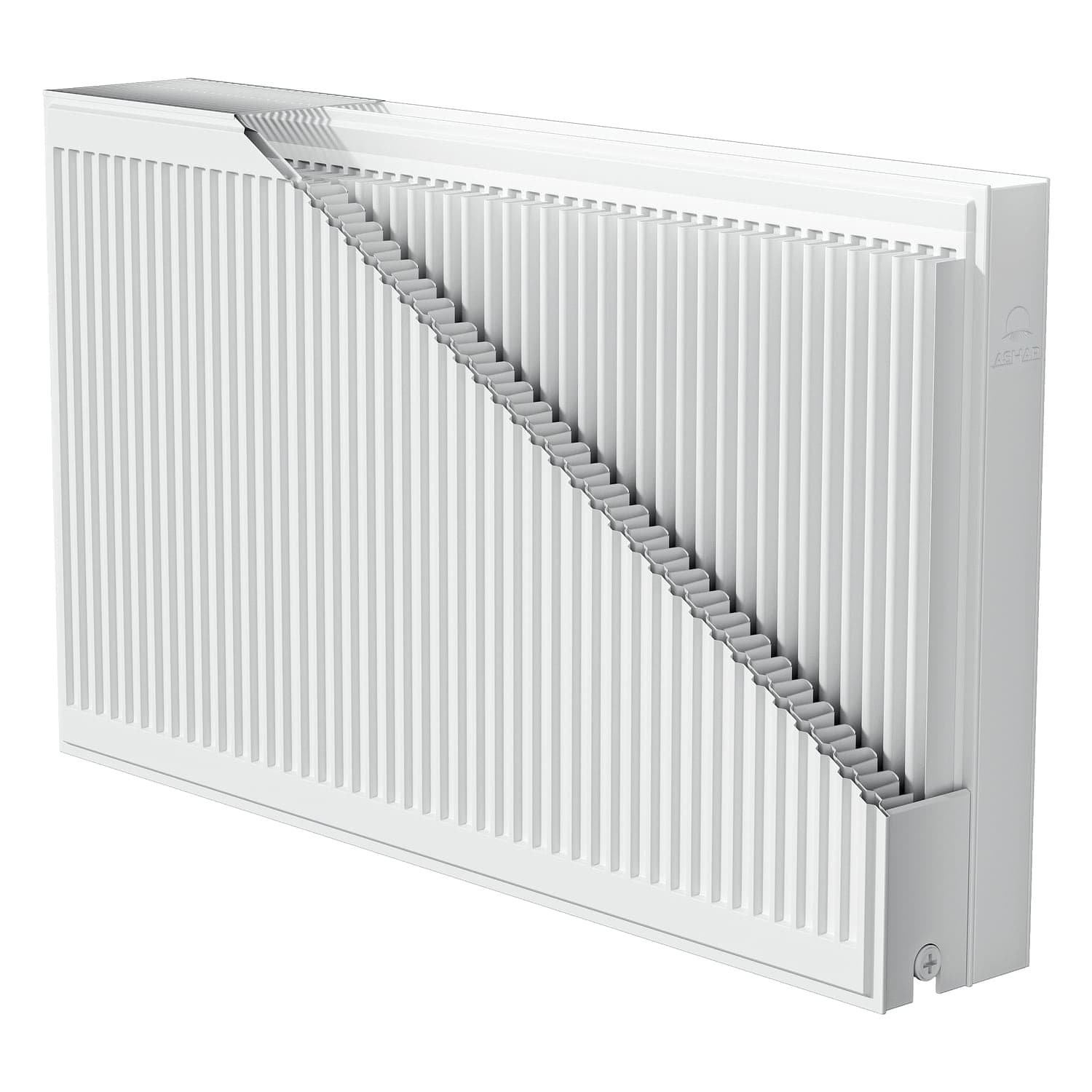

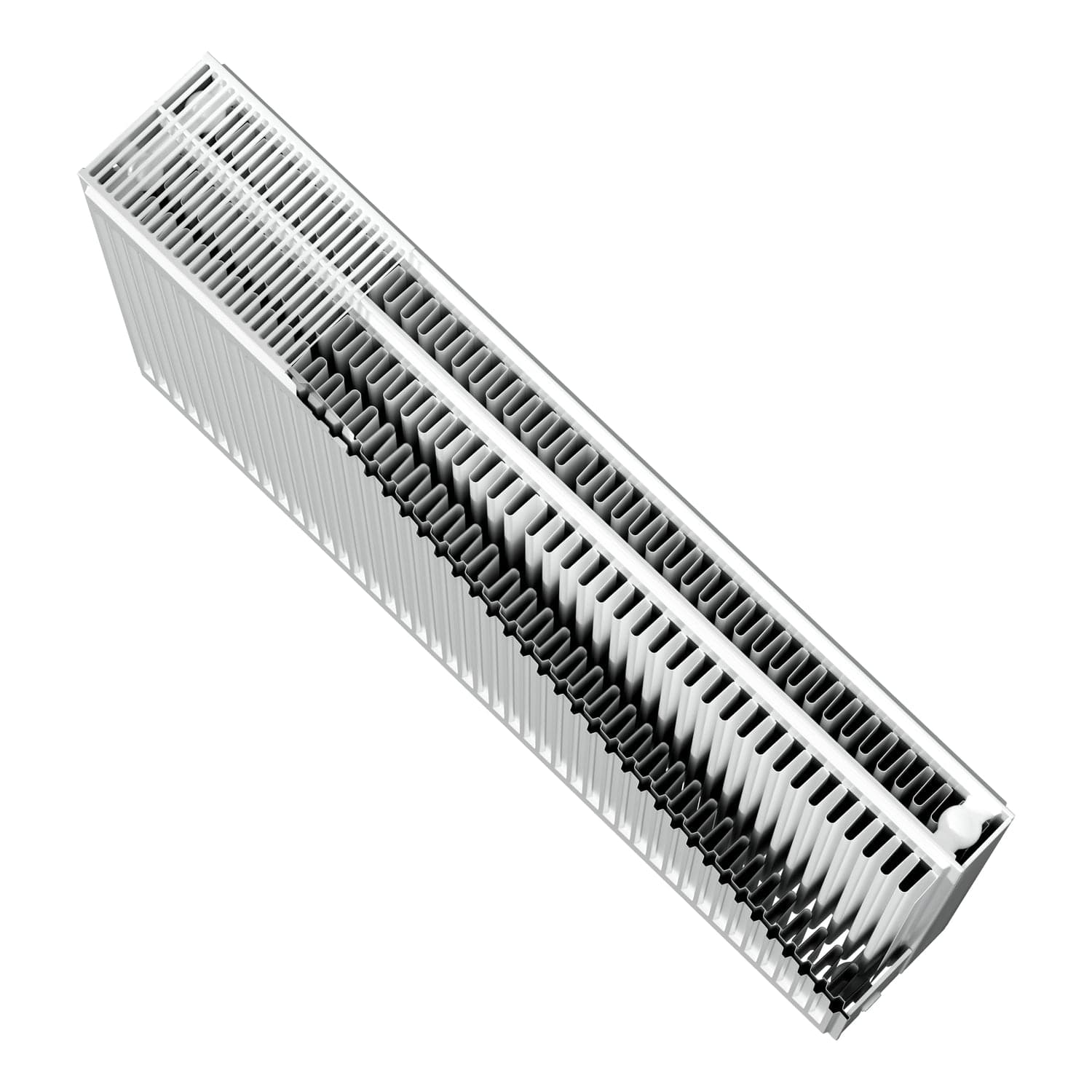

Profile	Type 33 (triple panel, triple convector)
Dimensions	300 / 400 / 500 / 600 / 900 mm
Depth	160 mm
Heat Output (EN442 ΔT=50°)	1100–8000 W
Heat Output (EN442 ΔT=30°)	≈ 566–4118 W
Working Pressure	1.0 MPa (10 bar)
Material	Cold-rolled steel
Available Colors	White RAL 9016
Finish	Powder coated

Specifications by size

Height (mm)	Length (mm)	Depth (mm)	Heat Output (W)	Weight (kg)
300	400	160	559	11.4
300	500	160	699	12.5
300	600	160	839	15.1
300	700	160	979	17.6
300	800	160	1118	20.1
300	900	160	1258	22.6
300	1000	160	1398	25.1
300	1100	160	1538	27.4
300	1200	160	1678	29.6
300	1400	160	1957	34.1
300	1600	160	2237	38.7
300	1800	160	2516	45.2
300	2000	160	2796	50.2
300	2200	160	3076	55.2
300	2400	160	3355	55.6
400	400	160	716	13.2
400	500	160	896	16.5
400	600	160	1075	20.8
400	700	160	1254	23.2
400	800	160	1433	26.5
400	900	160	1612	29.8
400	1000	160	1791	33.1
400	1100	160	1970	36.4
400	1200	160	2149	39.7
400	1400	160	2507	46.3
400	1600	160	2866	51.3
400	1800	160	3224	59.6
400	2000	160	3582	63.8
400	2200	160	3940	72.8
400	2400	160	4298	79.4
500	300	160	646	12.3
500	400	160	861	16.5
500	500	160	1077	21.9
500	600	160	1292	24.7
500	700	160	1507	29.6
500	800	160	1722	32.9
500	900	160	1938	37.3
500	1000	160	2153	41.1
500	1100	160	2368	45.2
500	1200	160	2584	49.4
500	1400	160	3014	57.6
500	1600	160	3445	64
500	1800	160	3875	74
500	2000	160	4306	79.8
500	2200	160	4737	87.3
500	2400	160	5167	98.7
600	300	160	745	14.7
600	400	160	994	19.6
600	500	160	1242	24.5
600	600	160	1490	29.4
600	700	160	1739	34.4
600	800	160	1987	40.1
600	900	160	2236	44.8
600	1000	160	2484	49.1
600	1100	160	2732	54
600	1200	160	2981	58.6
600	1400	160	3478	67.8
600	1600	160	3974	77.1
600	1800	160	4471	86.7
600	2000	160	4968	95.9
600	2200	160	5465	105.1
600	2400	160	5962	117.8
700	400	160	1115	22.5
700	500	160	1394	28.1
700	600	160	1673	35.6
700	700	160	1952	39.4
700	800	160	2230	45
700	900	160	2509	50.6
700	1000	160	2788	56.2
700	1100	160	3067	61.9
700	1200	160	3346	68
700	1400	160	3903	78.7
700	1600	160	4461	89.5
700	1800	160	5018	101.2
700	2000	160	5576	112.5

Heat output per EN 442 (ΔT=50°C). Custom lengths available on request.
