Designer Radiator
JD60/15
Single / Double Panel
Export-ready manufacturing
CE/EN442-certified production, exporting to 80+ countries since 2002.
OEM/ODM support: custom sizes, colors and packaging.

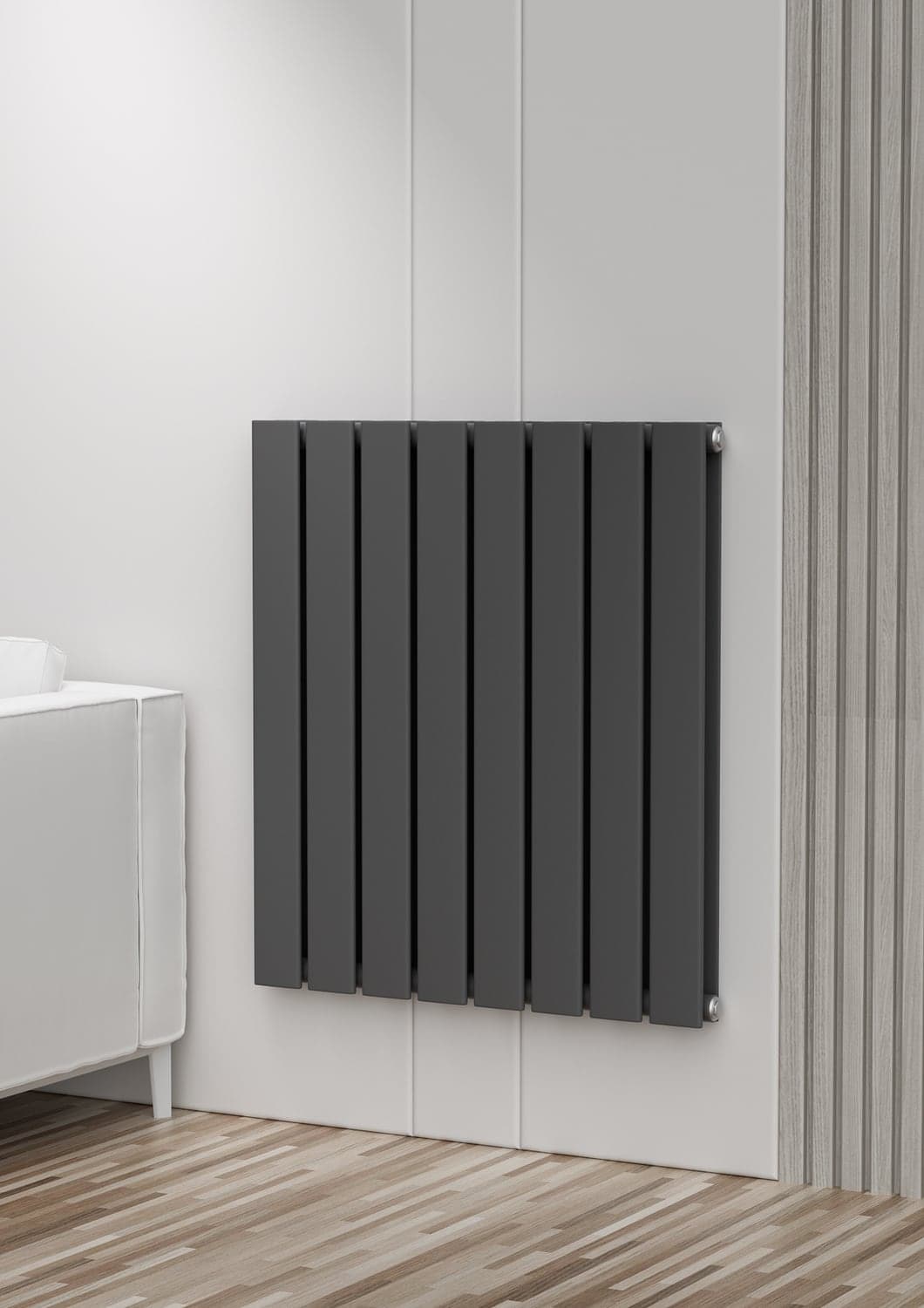

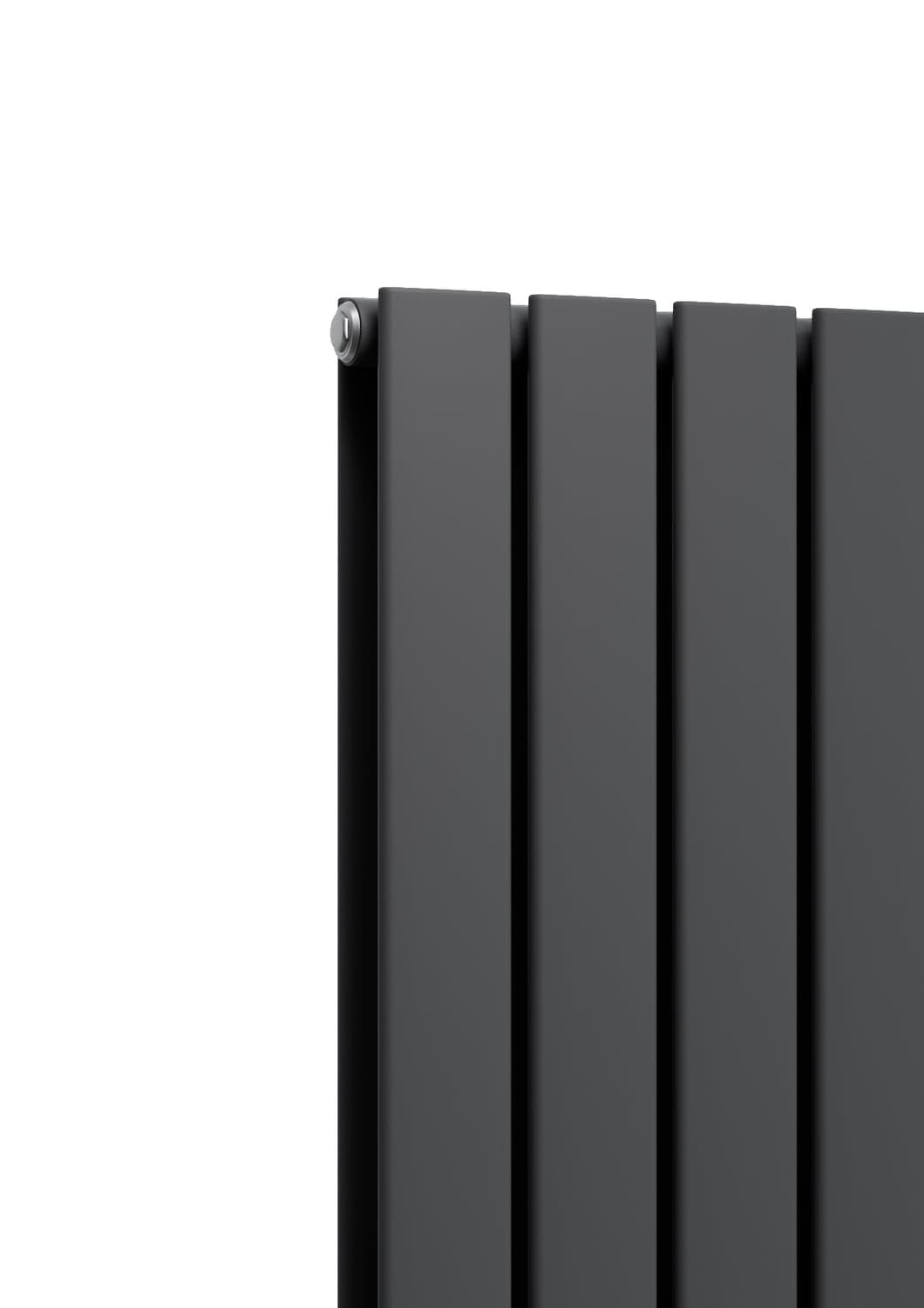

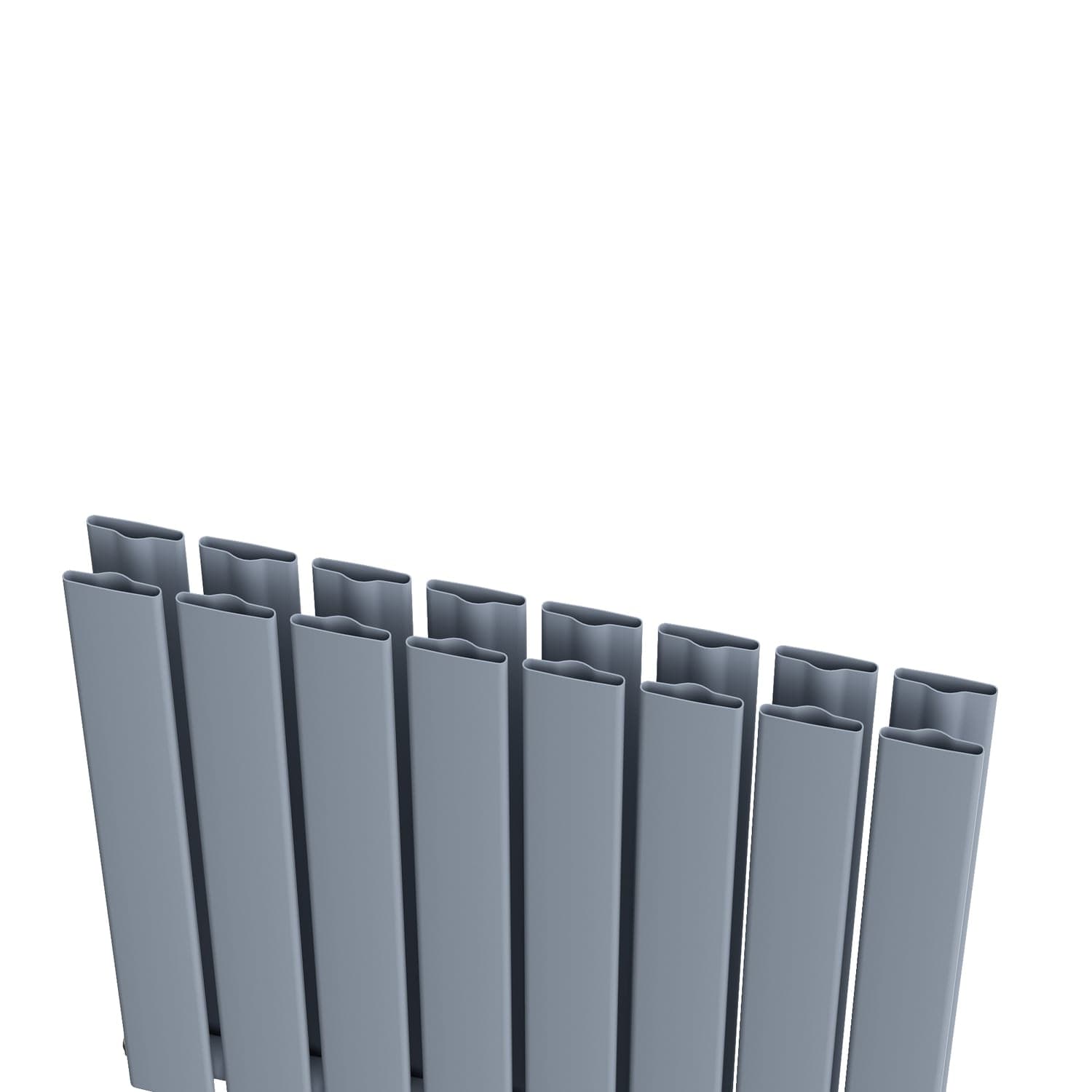

The JD60/15 uses Φ60×15 flat-oval vertical tubes joined to a Φ35 header, delivering an ultra-slim panel aesthetic — the 60 mm-wide, 15 mm-deep tubes sit in close formation and read almost as a solid slab from the front, while retaining the superior thermal circulation of a tubular radiator. Single- or double-panel configurations cover 500–2600 W over heights from 600 to 1800 mm; mount it vertically as a tall decorative column or horizontally beneath a window. Welded from low-carbon steel and available in glossy, reluster or matte finishes — white, anthracite, black or custom RAL. CE / EN442 certified, rated to 1.0 MPa, exported to 80+ countries since 2002 with OEM / ODM support.
Specifications
| Profile | Φ35 + Φ60×15 |
| Dimensions | 600 / 1200 / 1500 / 1800 mm |
| Heat Output (EN442 ΔT=50°) | 500–2600 W |
| Heat Output (EN442 ΔT=30°) | ≈ 257–1338 W |
| Working Pressure | 1.0 MPa (10 bar) |
| Material | Low-carbon steel |
| Available Colors | White / Anthracite / Black / Custom RAL |
| Finish | Glossy / Reluster / Matte |
