Designer Radiator
JD68/12
Single / Double Panel
Export-ready manufacturing
CE/EN442-certified production, exporting to 80+ countries since 2002.
OEM/ODM support: custom sizes, colors and packaging.

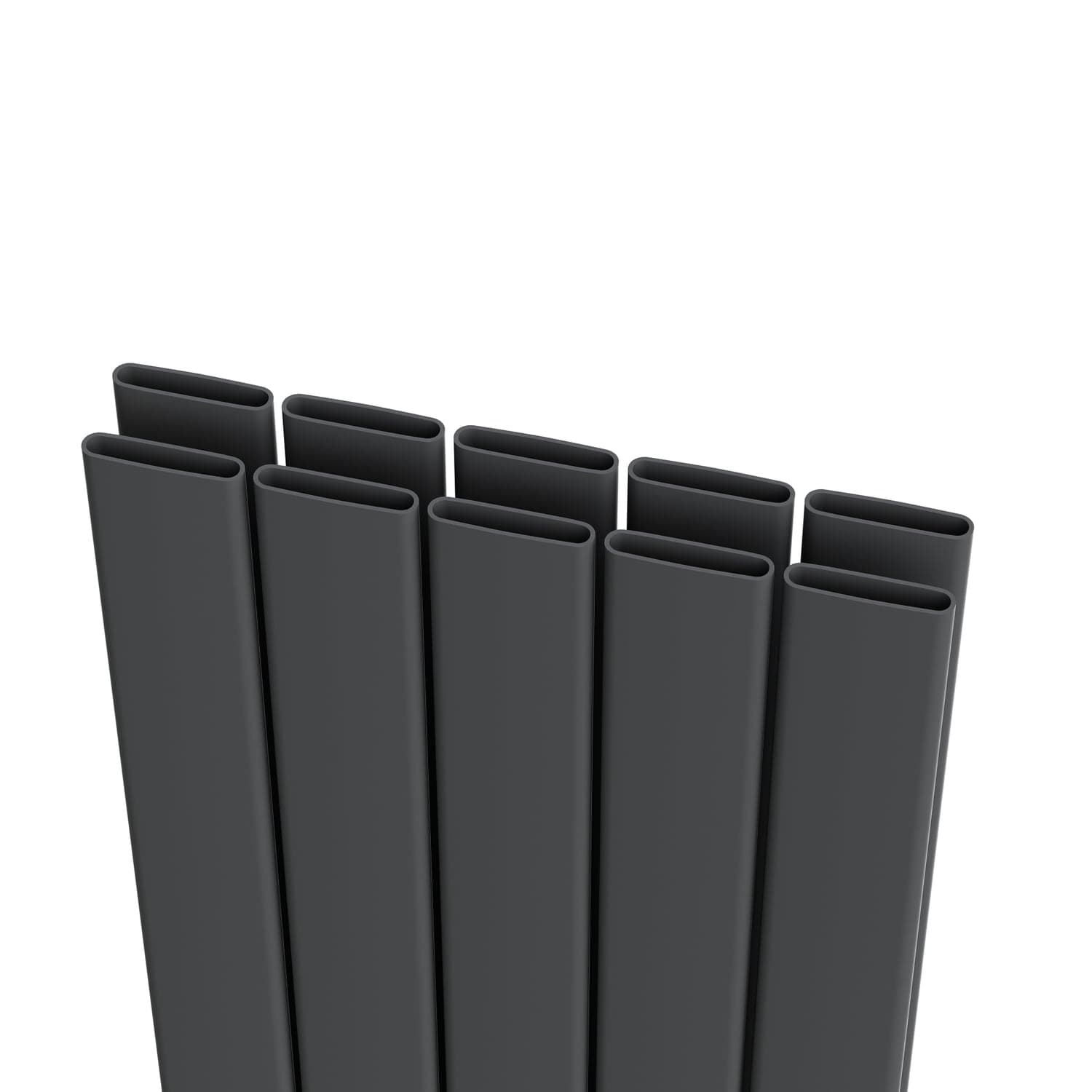

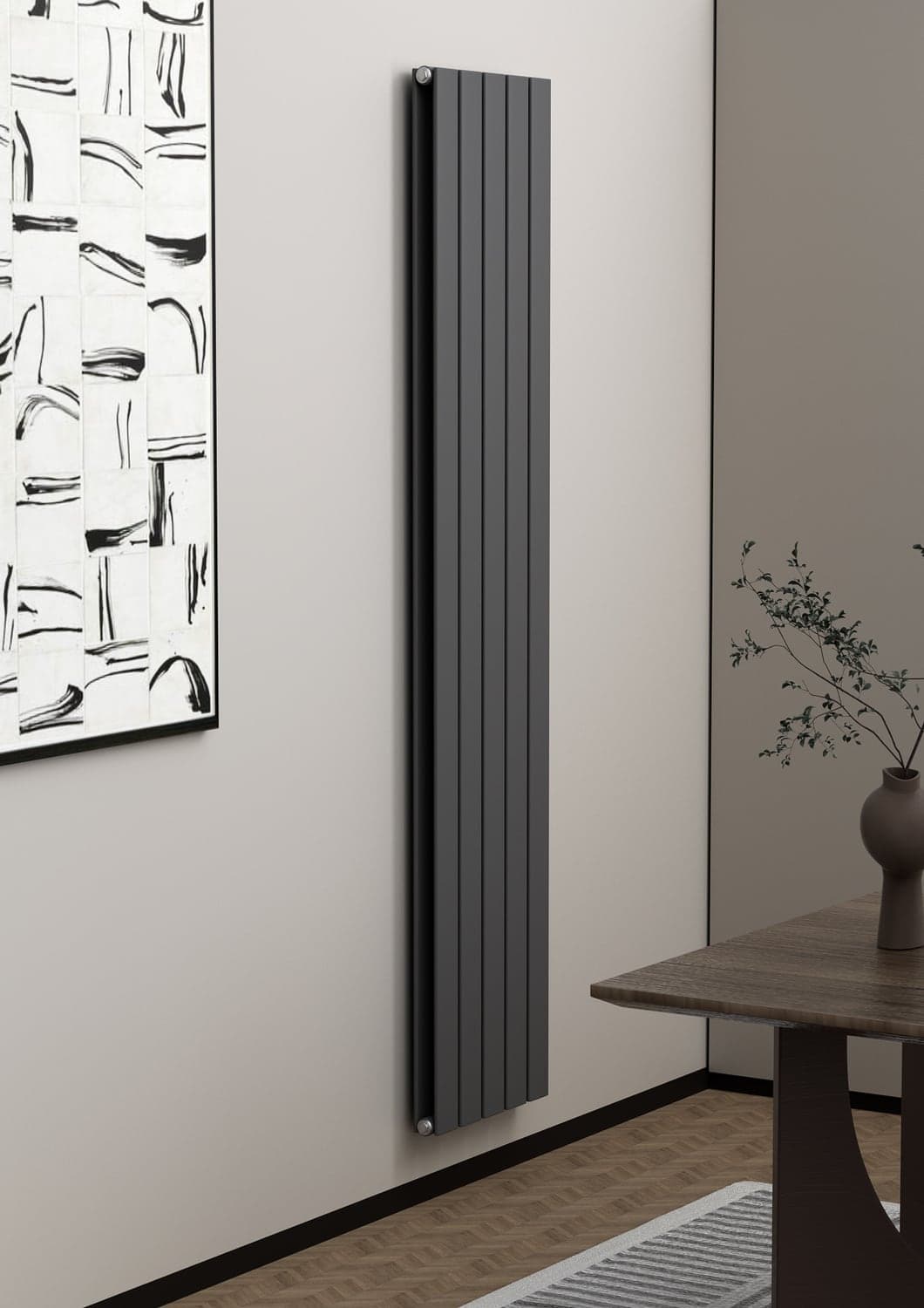

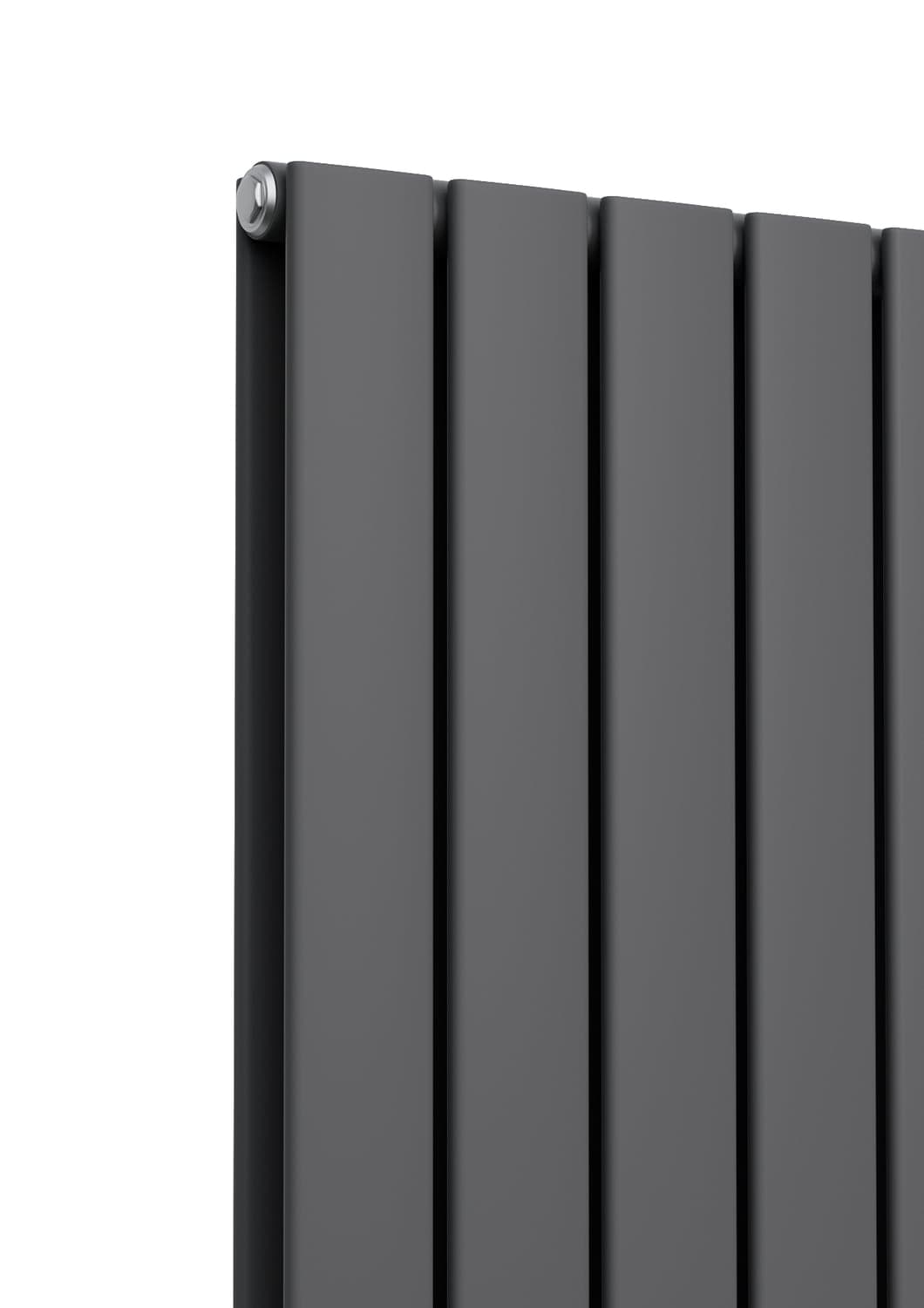

The JD68/12 designer radiator pairs a Φ35 flow header with Φ68×12 flat side tubes for a sharp, architectural look. Manufactured from low-carbon steel, it delivers 500–2800 W at a working pressure of 1.0 MPa, available in single or double panel in heights from 600 to 1800 mm. CE-certified to EN442, JD Radiator has supplied over 80 countries since 2002, with full OEM/ODM customisation available in White, Anthracite, Black, or any custom RAL colour.
Specifications
| Profile | Φ35 + Φ68×12 |
| Dimensions | 600 / 1200 / 1500 / 1800 mm |
| Heat Output (EN442 ΔT=50°) | 500–2800 W |
| Heat Output (EN442 ΔT=30°) | ≈ 257–1441 W |
| Working Pressure | 1.0 MPa (10 bar) |
| Material | Low-carbon steel |
| Available Colors | White / Anthracite / Black / Custom RAL |
| Finish | Glossy / Reluster / Matte |
