Bimetal Radiator
JD75/75TL
Copper-Aluminium Radiator
Export-ready manufacturing
EN 442 and GOST compliant production, exporting across Europe, Russia and Central Asia since 2002.
OEM/ODM support: custom sizes, colors and packaging.

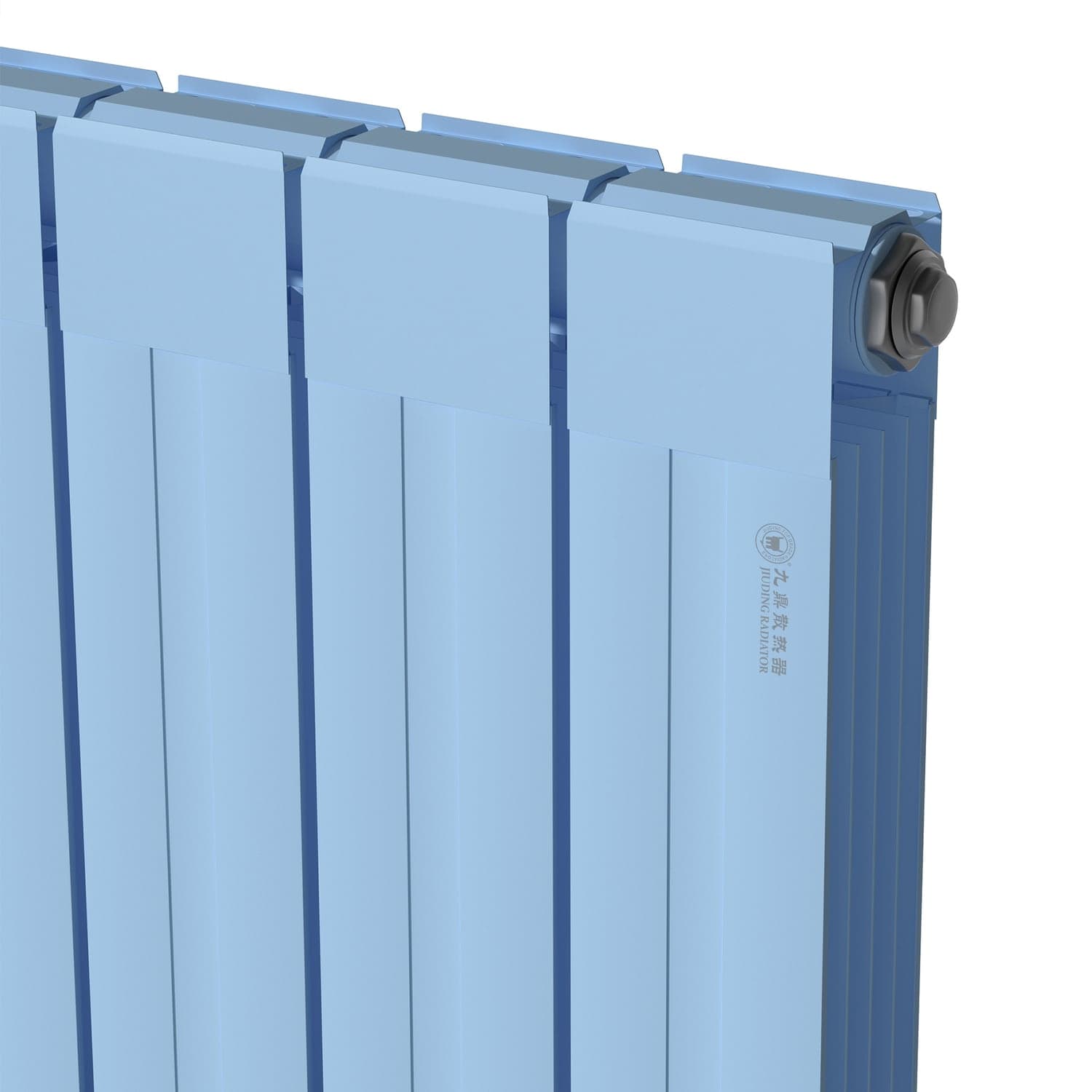

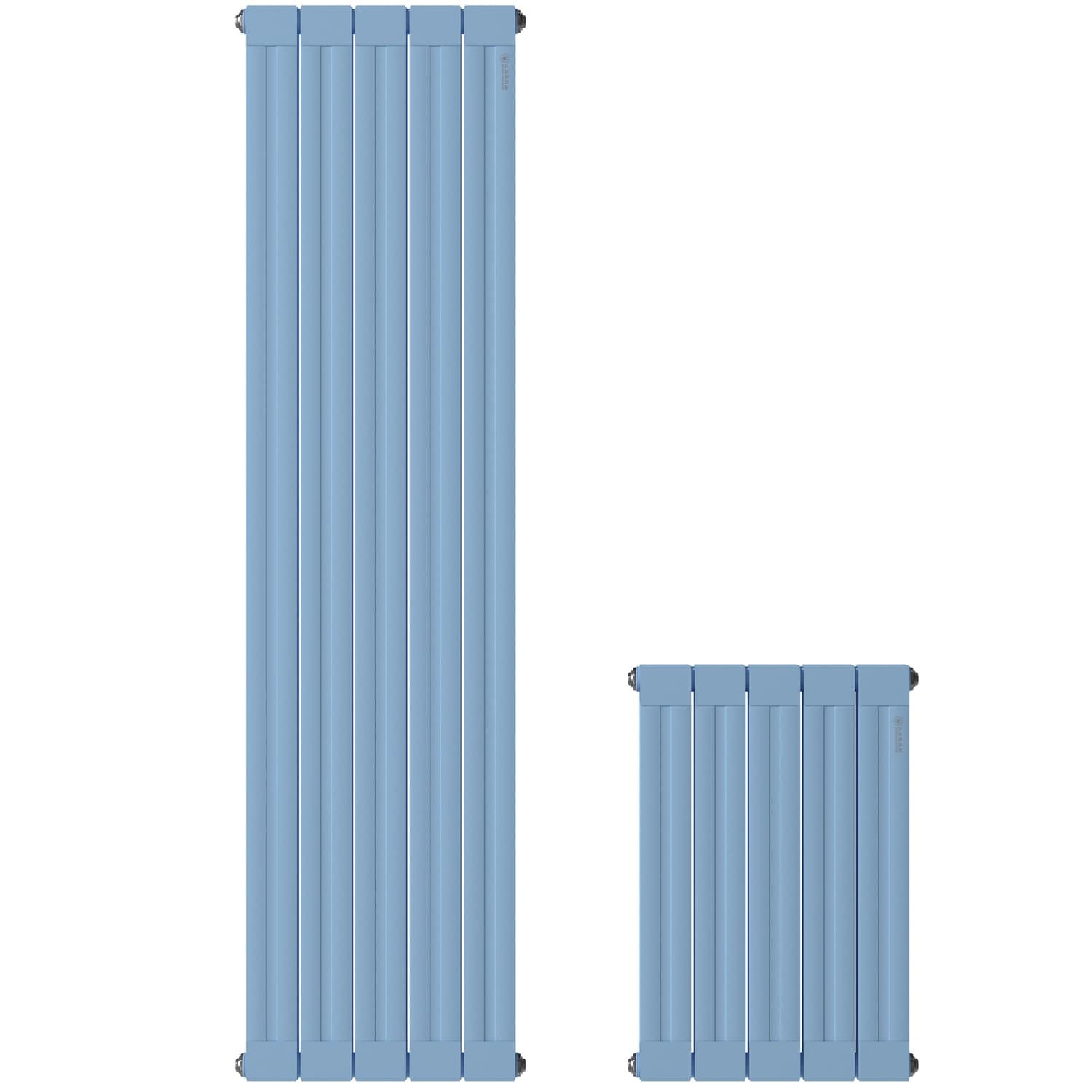

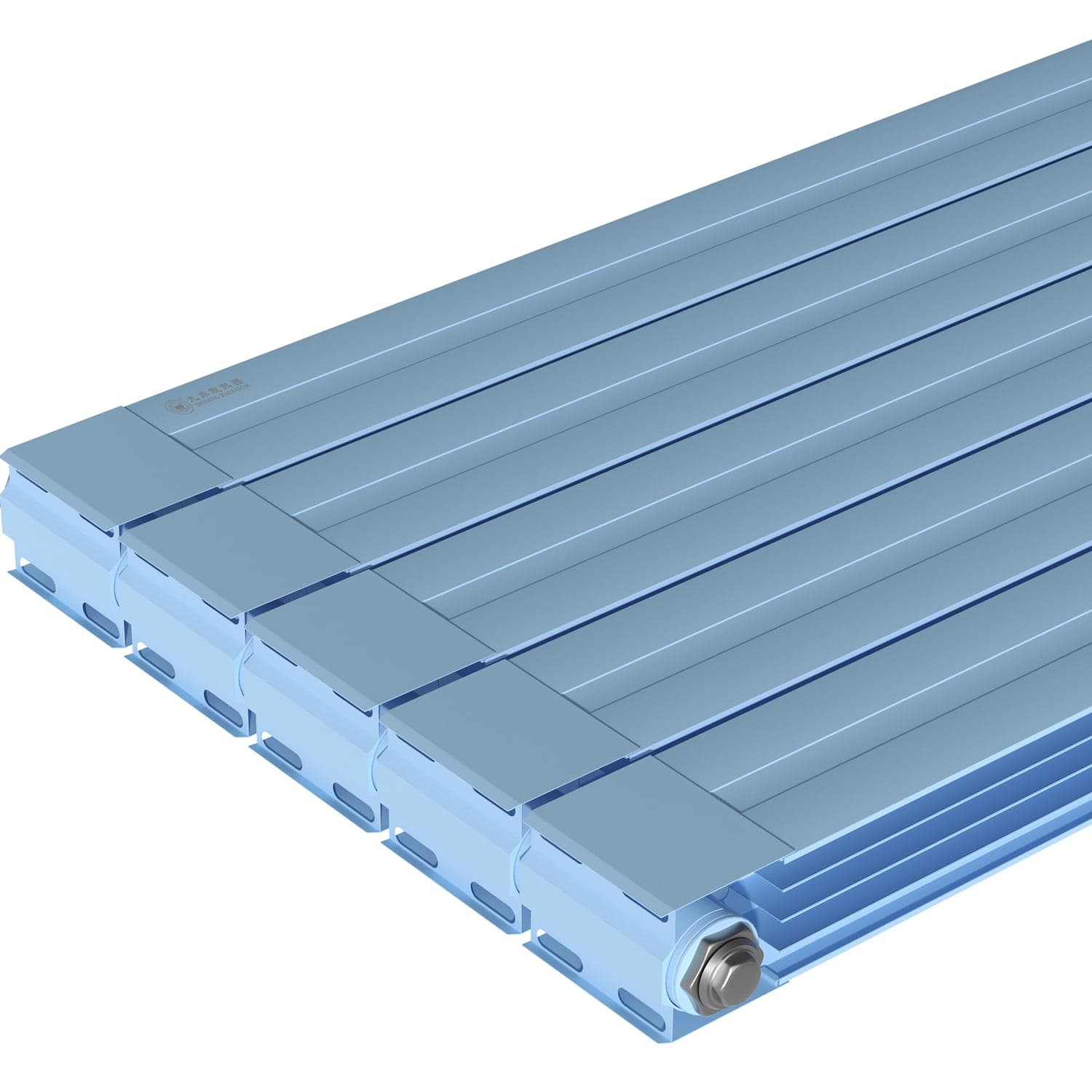

The JD75/75TL bimetal radiator pairs a seamless copper tube with aluminium fins — copper transfers heat rapidly and resists corrosion, while the large-area aluminium fin delivers outstanding thermal performance well above conventional steel radiators. Rated to 1.6 MPa (16 bar) for high-pressure district heating systems; powder-coated finish available in white or custom RAL. Per-section output 120–200 W, CE / EN442 certified. Exported to Europe, Russia and Central Asia since 2002, with OEM / ODM customisation available.
Specifications
| Profile | 75×75 mm |
| Dimensions | 500 / 600 / 900 mm |
| Heat Output (EN442 ΔT=50°) | Per section: 120–200 W |
| Heat Output (EN442 ΔT=30°) | Per section: ≈ 62–103 W |
| Working Pressure | 1.6 MPa (16 bar) |
| Material | Copper tube + Aluminium fin |
| Available Colors | White / Custom RAL |
| Finish | Powder coated |
